EMS Electrode Pad Conductive Silver Fiber Pad for Muscle Stimulation
EMS Electrode Pad Conductive Silver Fiber Pad for Muscle Stimulation

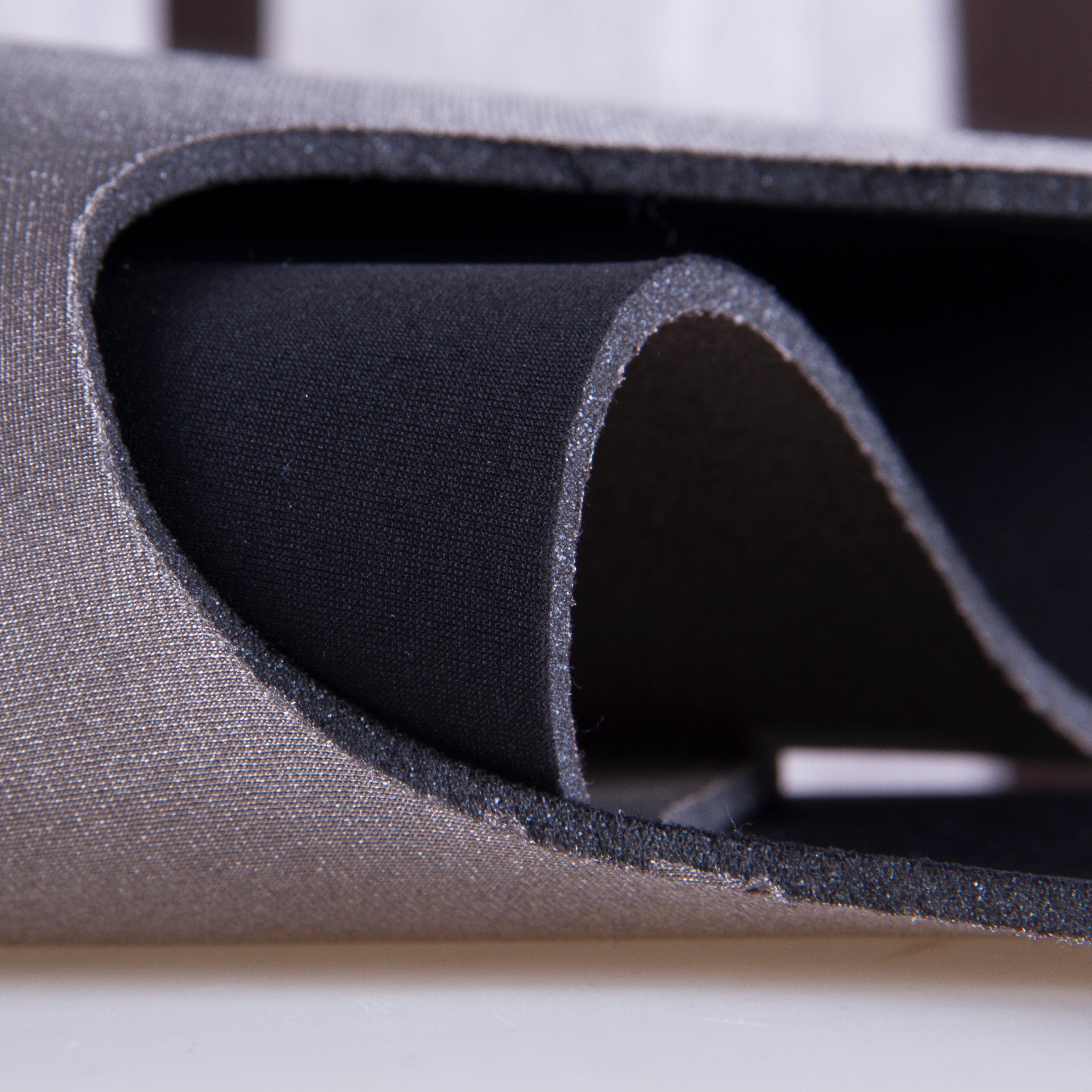

High-performance EMS Electrode Pad designed for EMS/TENS-compatible signal transfer and electrode applications. These pads use a silver-plated fiber layer for conductivity and a soft skin-contact surface.
Key Benefits:
- Excellent Conductivity: Silver-plated fiber helps spread current across the pad for consistent EMS signal transfer.
- Skin-Contact Textile Surface: Soft silver textile surface is designed for comfortable electrode applications.
- Reusable & Durable: Designed for long-lasting performance through repeated use cycles.
- Universal Compatibility: Standard connection type suitable for most popular EMS and TENS devices.
Technical Specifications:
- Material: Silver Fiber Non-woven Fabric
- Conductivity: High electrical performance
- Size: 50 x 50 mm (standard)
- Reusable: Yes
Care Instructions:
Wipe with a damp cloth after use. Do not submerge in water. Store in a cool, dry place.
Compare
Product comparison
Electrode
Piezoresistive
Silver
Carbon
0.1 -1 Ω
10⁴–10⁷ Ω
Piezoresistive Resistance Data Sheet
A sandwich structure using conductive PCB silver thin films on the top and bottom layers. Under a 0–2 kg applied force over a 1 cm-diameter contact area, the values shown represent the average of five measurements. This dataset serves as a material performance reference.
A piezoresistive textile sensor converts applied pressure into resistance changes using a layered fabric structure. Zebra-pattern conductive electrodes sandwich a carbon-based piezoresistive fabric. Under compression, internal contact points increase, lowering resistance. Finer electrode line spacing generates denser sensing matrices, improving spatial resolution, flexibility, and signal stability for wearables, soft robotics, and pressure-mapping systems.
A capacitive textile sensor consists of flexible top and bottom conductive electrodes separated by a soft dielectric textile layer. When pressure is applied, the distance between electrodes decreases and the effective dielectric structure changes, resulting in a measurable capacitance variation. This fabric-based architecture provides excellent conformability, stable signal response, and reliable pressure sensing on curved or dynamic surfaces.
A piezoresistive textile sensor converts applied pressure into resistance changes using a layered fabric structure. Zebra-pattern conductive electrodes sandwich a carbon-based piezoresistive fabric. Under compression, internal contact points increase, lowering resistance. Finer electrode line spacing generates denser sensing matrices, improving spatial resolution, flexibility, and signal stability for wearables, soft robotics, and pressure-mapping systems.
A capacitive textile sensor consists of flexible top and bottom conductive electrodes separated by a soft dielectric textile layer. When pressure is applied, the distance between electrodes decreases and the effective dielectric structure changes, resulting in a measurable capacitance variation. This fabric-based architecture provides excellent conformability, stable signal response, and reliable pressure sensing on curved or dynamic surfaces.
Every sensing application comes with unique technical requirements
We provide flexible customization services across electrode layout, pattern geometry, and conductive textile structures. In addition to silver-based materials, we also offer alternative conductive options such as stainless steel and other alloy-based conductive textiles to meet different performance, durability, and cost targets.
Matrix Layout
Flexible Trace
High Density Pattern
FAQ
Does the fabric maintain conductivity after long-term fatigue, folding, or abrasion?
The conductive network is part of the yarn or fabric structure rather than a thin surface film, so mechanical stress is spread across many fibers. This usually makes it more tolerant of folding and rubbing than thin films or PCB traces. Long-term results still depend on the material, load and use conditions, so ask us for test data for your application.
How does humidity, temperature, or sweat affect surface resistance and signal consistency?
Environmental effects vary by material. Carbon-based textiles show minimal drift, while silver or copper coatings may oxidize more quickly. Stainless-steel and carbon-based options are generally more stable. The best choice depends on the customer’s performance and environmental requirements.
Can the fabric be customized in resistance range, GSM, yarn type, or structure for specific sensing needs?
Yes. We understand that every sensing design is different, and many applications require customized solutions rather than standard products. Our conductive textiles can be tailored in surface resistance, GSM, yarn composition, and fabric structure to meet specific performance targets such as sensitivity, response curve, durability, or integration method.
